Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place
Project: Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place (WalT1yae-102-03a)
from our portfolio of Recent Projects
Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...
The 8 inch ICF panel wall and the footing were in place. The footing for the new section of the wall -- a 4 inch ICF panel wall had been poured but the wall was to be built later.
The 4 inch panel wall in this case had light vertical loading and a little lateral load from backfill ranging from a maximum of 42 inches at one end down to nothing at the other end.
The outer faces of both walls were in line. I specified doweling the new 4 inch panel wall to the existing footing as well as to the existing 8 inch panel wall.
In another post I have discussed Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place
and
New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall
and
ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall
I present here some pictures showing both the new 4 inch panel wall and the existing 8 inch panel wall.

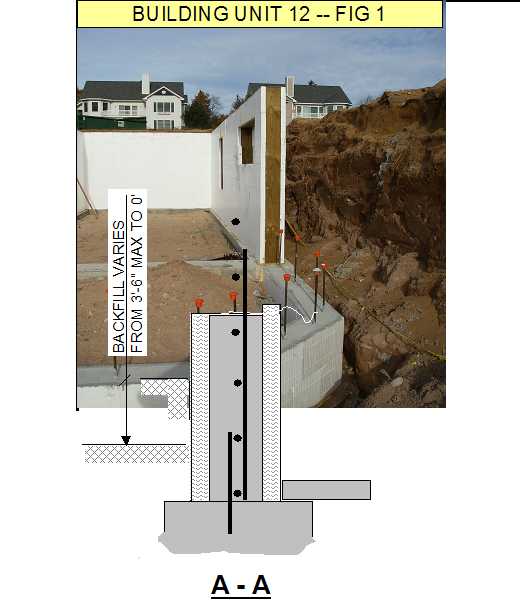

Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place ... Picture 1
ANAND Enterprises project Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place (WalT1yae-102-03a-eebn)

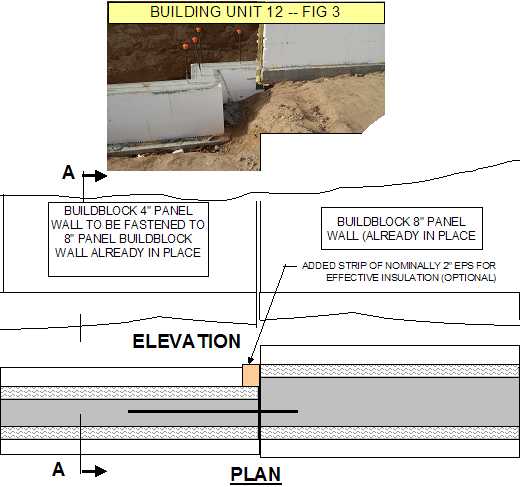

Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place ... Picture 2
ANAND Enterprises project Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place (WalT1yae-102-03a-eebn)

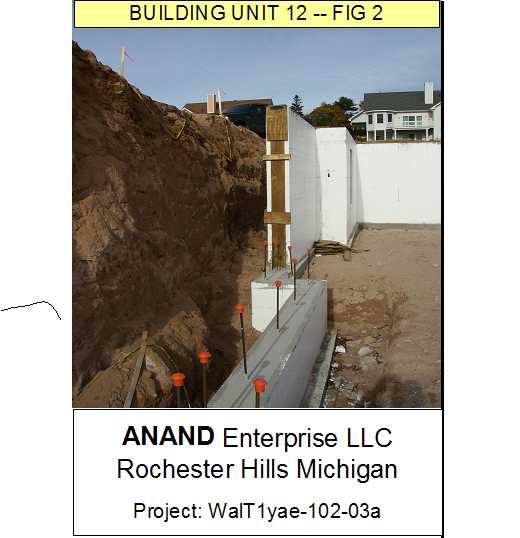

Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place ... Picture 3
ANAND Enterprises project Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place (WalT1yae-102-03a-eebn)
beginning of Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place
