ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall
Project: ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03d)
from our portfolio of Recent Projects
Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...
Here we have a new 4 inch panel ICF wall and footing to an existing 8 inch panel ICF wall
The footing for the new ICF wall is at a lower level. The soil conditions were such that we did not need a stepped footing. I specified doweling in the new 4 inch panel wall to the existing wall.
I have also discussed New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall
and
Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place
and
Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place
I present here some pictures showing both the new 4 inch wall and the existing 8 inch panel ICF walls -- I will keep you posted with more progress pictures.

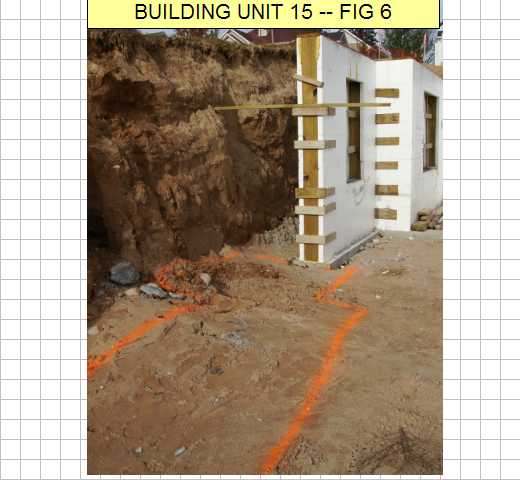

ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall ... Picture 1
ANAND Enterprises project ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03d-eebn)

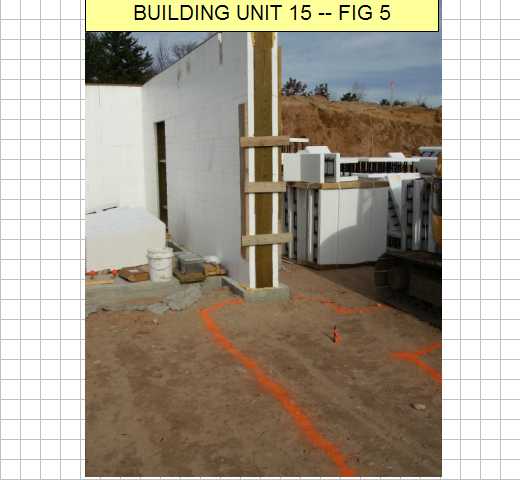

ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall ... Picture 2
ANAND Enterprises project ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03d-eebn)

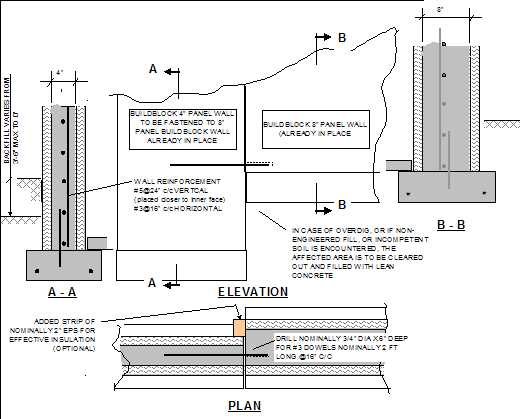

ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall ... Picture 3
ANAND Enterprises project ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03d-eebn)

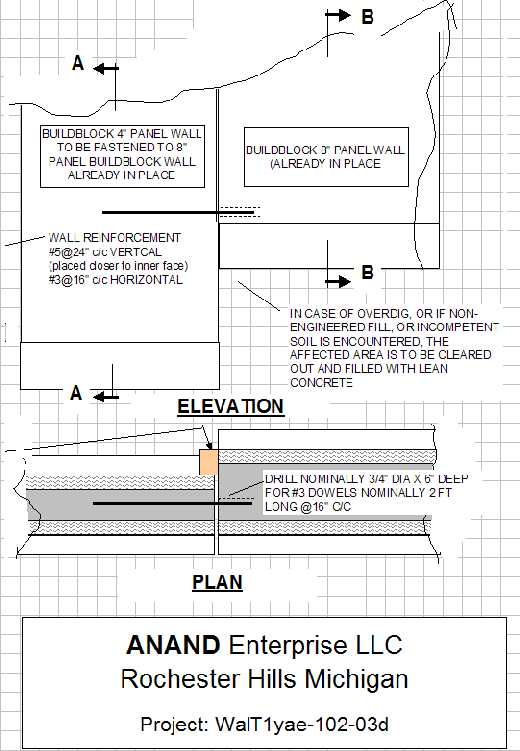

ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall ... Picture 4
ANAND Enterprises project ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03d-eebn)
beginning of ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall
