Here we have a header for 4 inch panel ICF wall with light framed second story and roof load above.

It is a relatively small span header but this is going over a number of windows in a number of buildings

I have also discussed New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall

and Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place

and Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place

and ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall

I present here some pictures of the header -- I will keep you posted with more progress pictures.

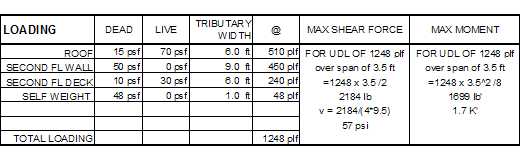

Header-For-ICF-Wall-With-Light-Framed-Second-Story-And-Roof-Above ... Picture 1




ANAND Enterprises project Header-For-ICF-Wall-With-Light-Framed-Second-Story-And-Roof-Above (WalT1yae-102-03e-eebn)

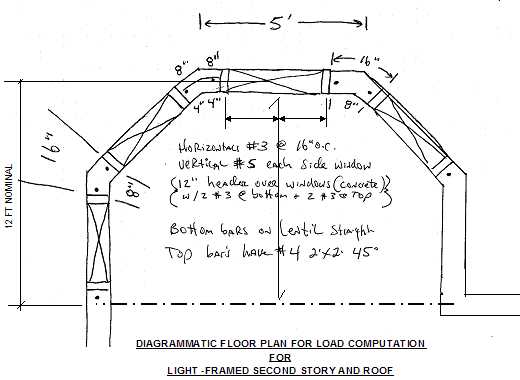

Header-For-ICF-Wall-With-Light-Framed-Second-Story-And-Roof-Above ... Picture 2




ANAND Enterprises project Header-For-ICF-Wall-With-Light-Framed-Second-Story-And-Roof-Above (WalT1yae-102-03e-eebn)

---

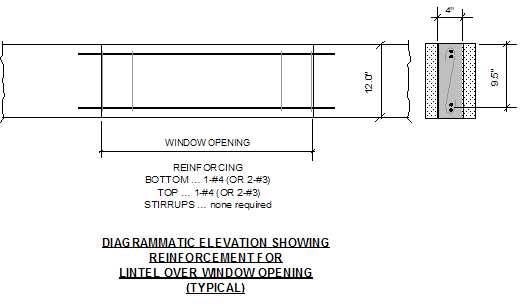

Header-For-ICF-Wall-With-Light-Framed-Second-Story-And-Roof-Above ... Picture 3




ANAND Enterprises project Header-For-ICF-Wall-With-Light-Framed-Second-Story-And-Roof-Above (WalT1yae-102-03e-eebn)

---

beginning of Header-For-ICF-Wall-With-Light-Framed-Second-Story-And-Roof-Above
