Draintile-on-Inside_for-Stehr-House-in-Highland-Twp-Michigan
|
We are using Form-A-Drain on the outside of the basement slab which we have designed primarily as a monlithic slab.
In our last update we discussed the
Monolithic Slab Layout for Stehr House in Highland Twp MichiganSep-11-2006 Update
In the door openings at walk-out, we used a trench footing filled it with stone to nominally near the bottom face of the concrete slab.
On the inside we are using a 4" perforated drain tile with sock and with pea gravel arounfd the drain tile. On each of the four sides we used a PVC bleeder to connect the drain tile to Form-A-Drain.

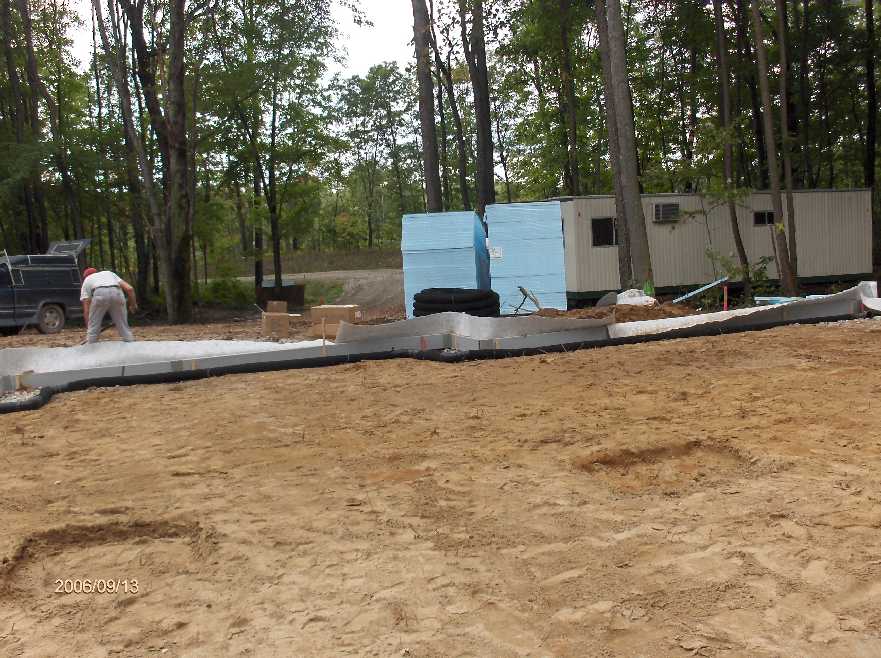

A shot of the drain tile laying work in progress -- with Nate kneeling down, Darrell holding up the drain tile, and Dave Dotson on the right doing the prep work ahead of Darrell and Nate ... Picture 1
ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan
Another shot of the drain tile work in progress ... Picture 2
ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan
