Rosie O'Grady's Restaurant & Pub on 23 Mile Road in Chesterfield Twp Michigan -- Building Addition and Upgrading

Concrete in the ICF walls had been placed upto just below the headers under the Second Floor level on Jun-10-2008.

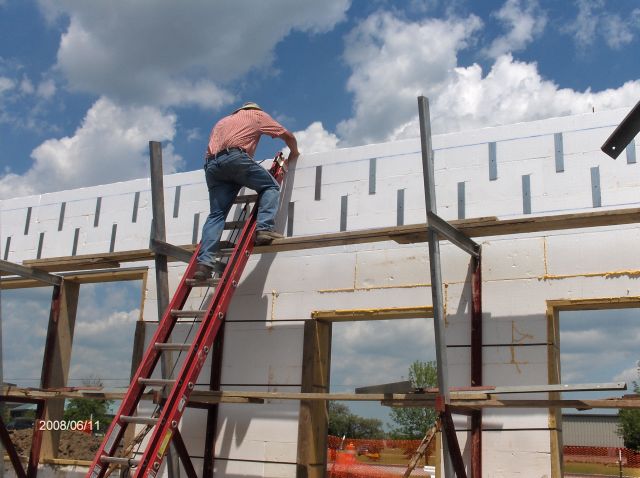

ICF forms were then installed for the headers. The headers over the First Floor windows are nominally 3 ft deep and support a deep open web joists that would accommodate the specified HVAC duct passing through the joists. The joists would be supported by Rim Joist anchored to the ICF walls.

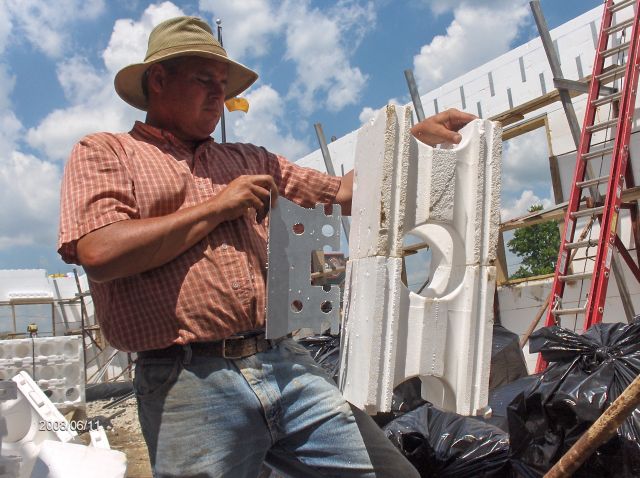

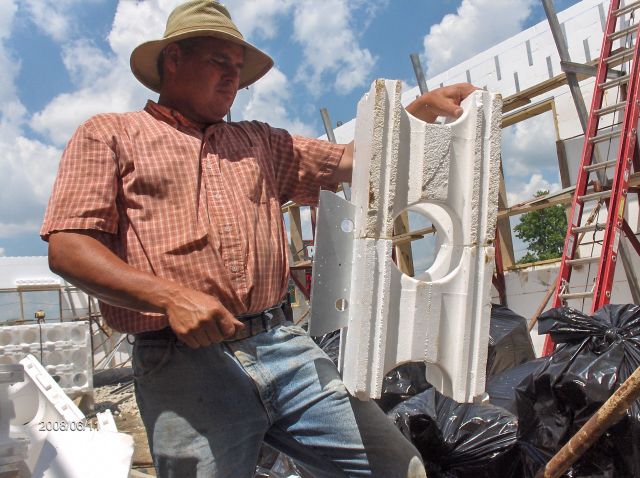

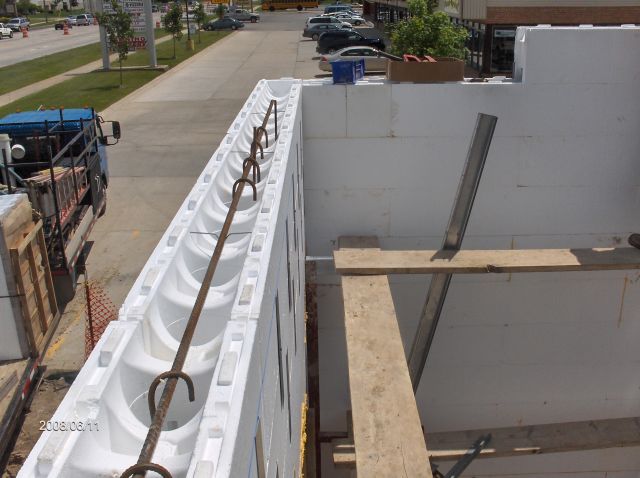

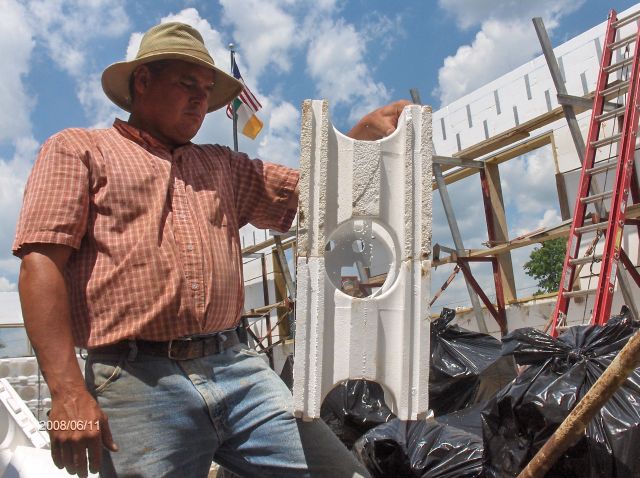

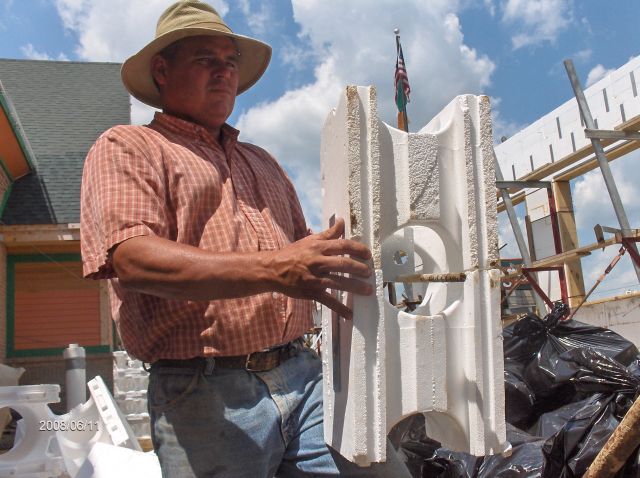

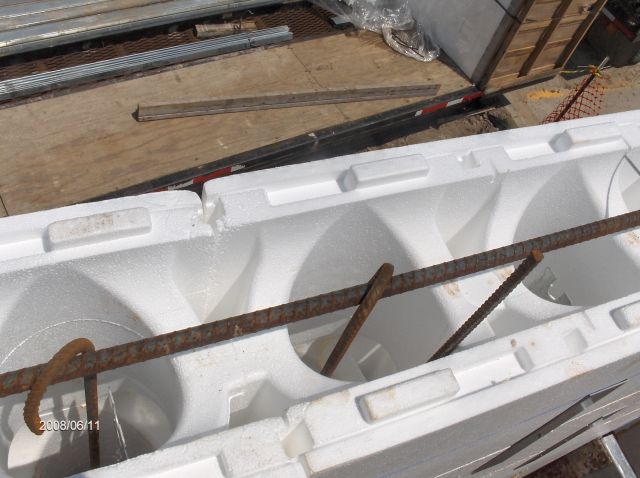

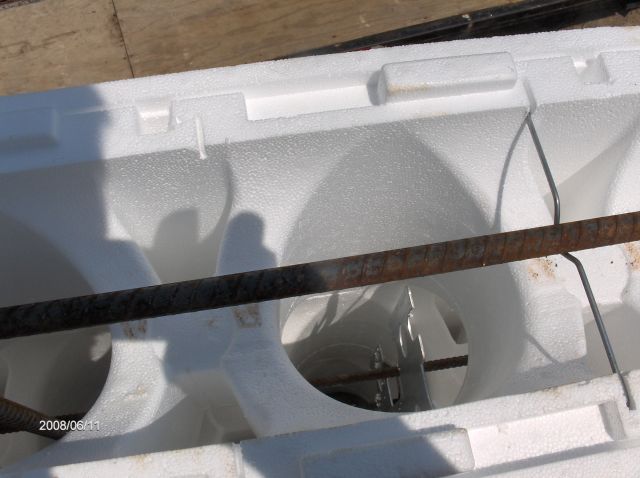

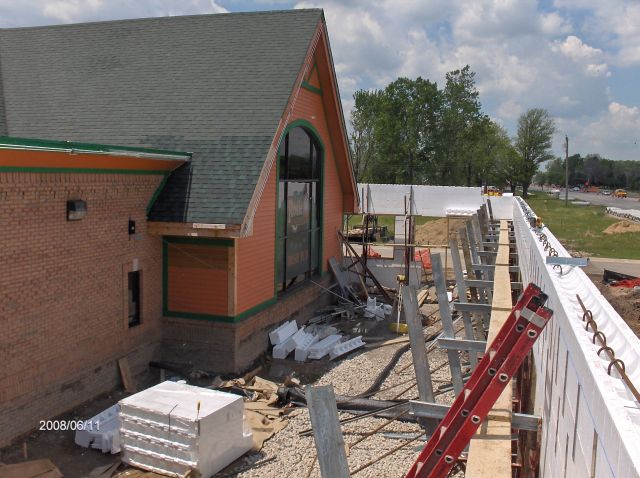

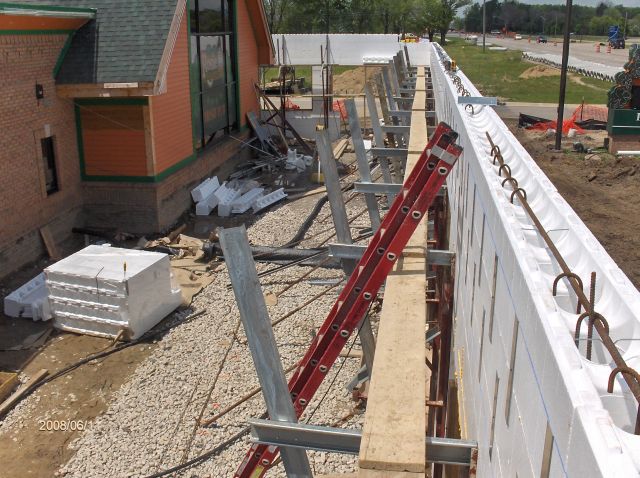

Here we look at the anchor plates installed into the ICF forms and the installation of the header reinforcement. I will keep you posted with the progress as we go along.
