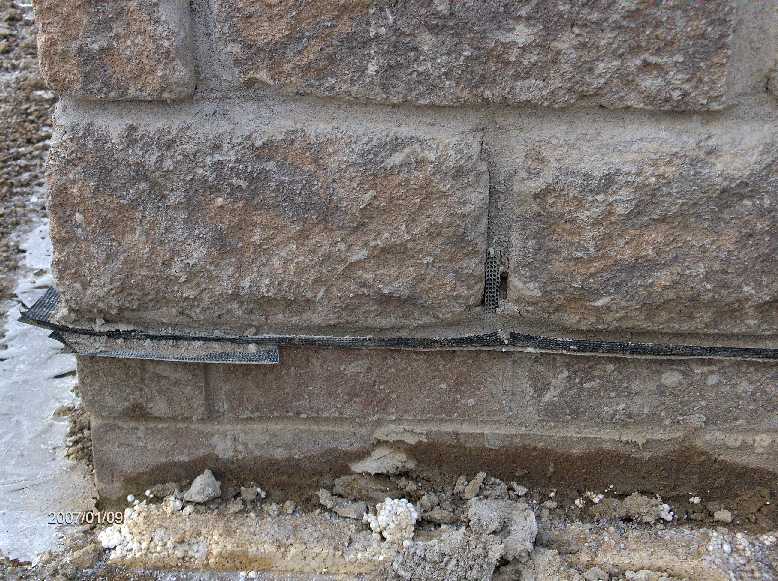

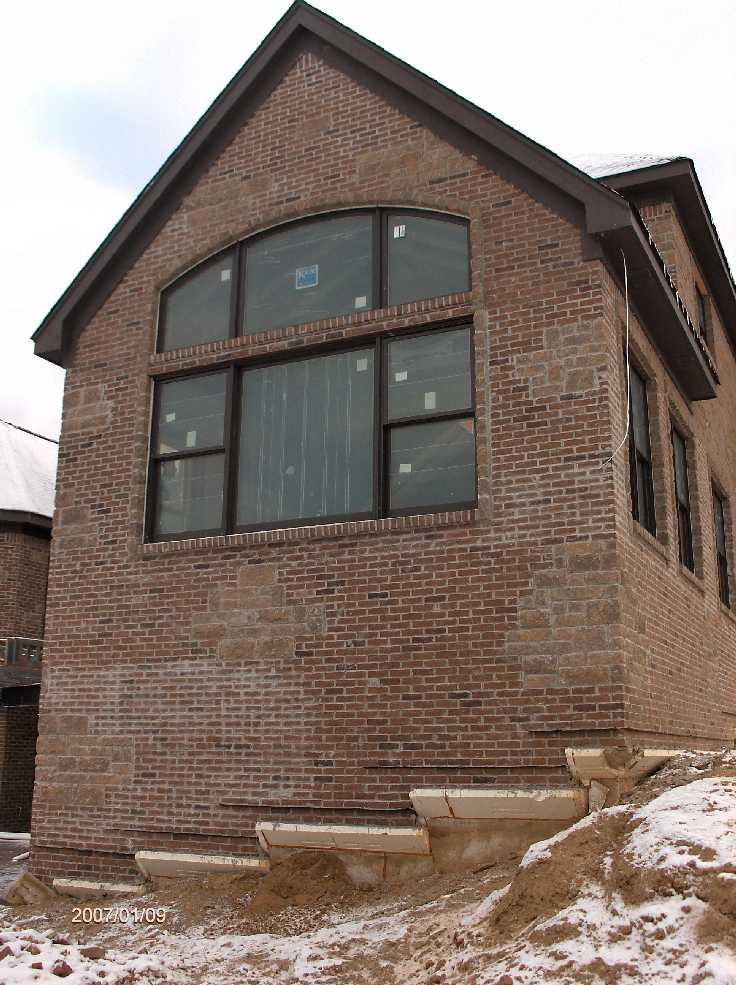

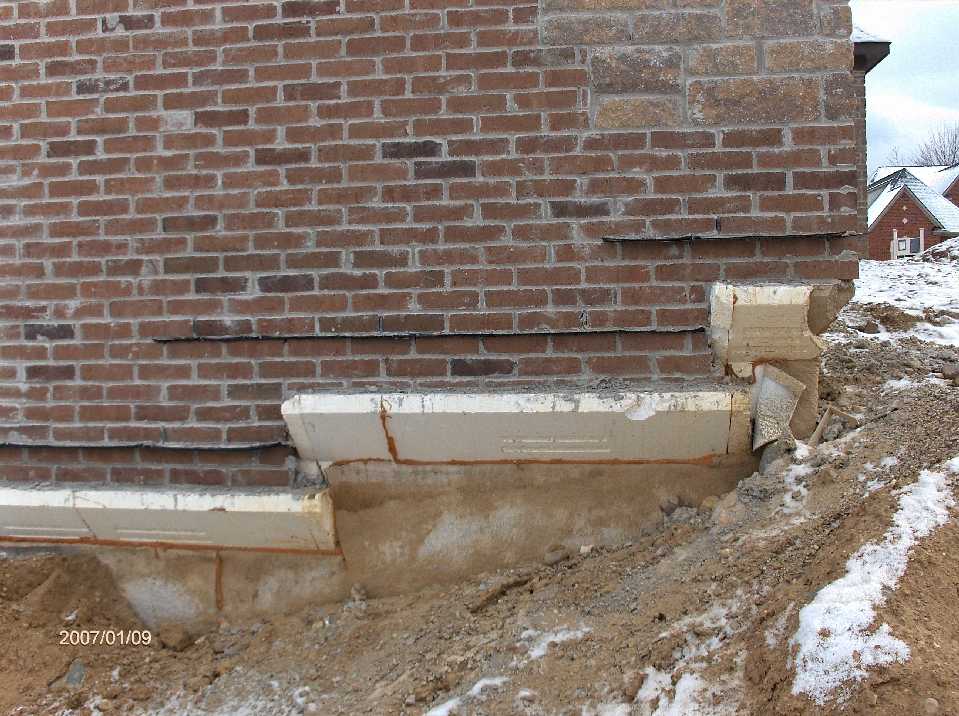

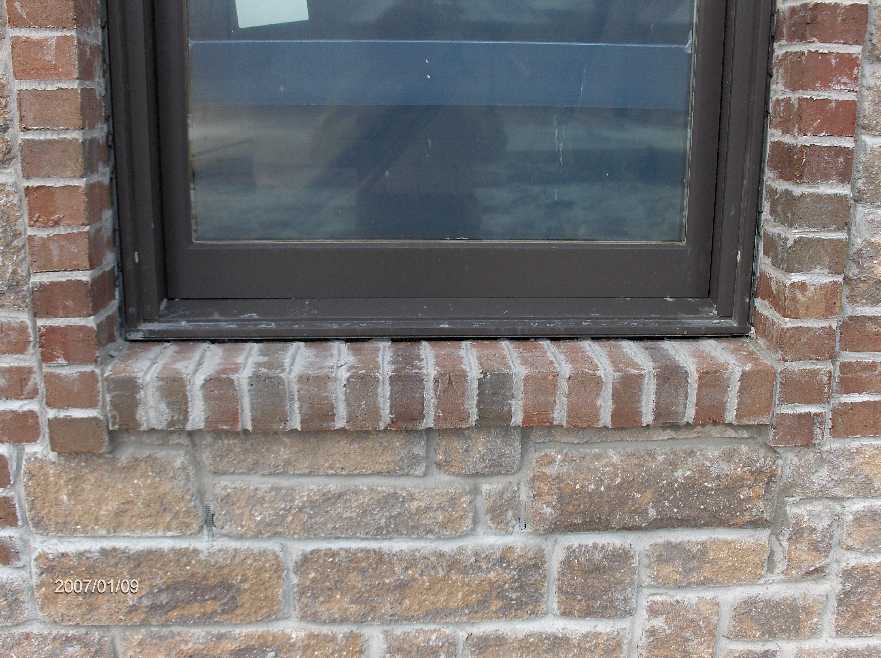

The face brick and the stone facade on the ICF walls were installed using brick wall ties. The wall ties are jnserted typically at 24" c/c through the outer EPS foam skin so that on concreting that they get embedded in the ICF wall concrete. Flashing and weep holes are provided as in conventional stick wall construction. The entire house has mostly face brick with the stone facade at some places. During my walk-down inspection of Jan-09-2007, I noticed that practically all of the face brick and stone facade work has been completed. In the following, I have posted some pictures of the face brick and stone facade work. Picture 1 ... Face-Brick-and-Stone-Installation_for-Dan-Hossack-ICF-House-in-Independence-Twp-Michigan showing the Face Brick resting on ICF Brick Ledge, Flashing behind the Face Brick and the Face Brick Work around the window sill, jambs and header Face Brick on ICF Wall Brick Ledge ANAND Enterprises project Dan Hossack ICF House in Independence Twp Michigan Picture 2 ... Face-Brick-and-Stone-Installation_for-Dan-Hossack-ICF-House-in-Independence-Twp-Michigan a close up from Picture 1 of the Brick Ledge support for Face Brick and the Flashing behind the Face Brick ANAND Enterprises project Dan Hossack ICF House in Independence Twp Michigan Picture 3 ... Face-Brick-and-Stone-Installation_for-Dan-Hossack-ICF-House-in-Independence-Twp-Michigan showing the Flashing and the Weep Holes for Stone facade ANAND Enterprises project Dan Hossack ICF House in Independence Twp Michigan Picture 4 ... Face-Brick-and-Stone-Installation_for-Dan-Hossack-ICF-House-in-Independence-Twp-Michigan showing the Face Brick work at a Window sill and jambs and Weep Holes in Face Brick work ANAND Enterprises project Dan Hossack ICF House in Independence Twp Michigan beginning of Face-Brick-and-Stone-Installation_for-Dan-Hossack-ICF-House-in-Independence-Twp-Michigan back to our Energy Efficient Building Network home page
